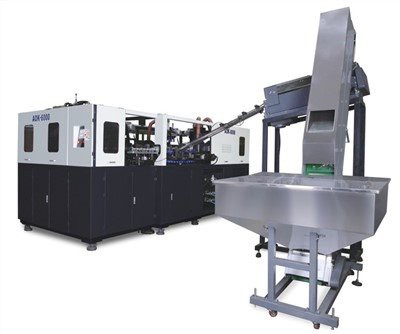

מכונה לייצור בקבוקי חיות מחמד

מכונה לייצור בקבוקי חיות מחמד

TEC BLOW's significant technology and innovation applied in the key part of blowing machines. It's operation, nonstop production, less room, high capacity, less heating power and air consumption all meets customers' requirement. TEC BLOW becomes the leading technology in plastic machinery field.
שלח החקירה

הצגת המוצר

1.Stable performance with Advanced PLC

1.Stable performance with Advanced PLC
2.Conveying performs automatically with conveyor.
3.Strong penetrability and good and swift distribution of the heat by letting the bottles rotate by itself and revolute in the rails simultaneously in the infrared preheater.
4.High adjustability to enable the preheater to preheat performs in shapes by adjusting the light tube and
the length of the reflecting board in the preheating area,and  eternal temperature in the preheater with an automatic thermostatic apparatus.
5.Optimization of the oven,suction and convulsion devices,cool the preform surface.Waterway,air duct directly through the device,double protect the screw neck
6.Each mechanical action has safety self-locking device,whe a process fails, the program will automatically switch to the security status.
7.Servo device for the material transfer and bottle perform distribution, fast,reliable,and high stability.
8.Using high pressure and hyperbolic arm connecting rod clamping,strong clamping force,speed and distance of clamp open are adjustable.
9.Safe,reliable,and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
10.Along with remotemaintenance systems,remote inspection maintenance,solve the troubles for you.
11.Low rejection rete: less than 0.2 percent.


דֶגֶם

יחידה

מכה TECII 5L-4CAV

מערכת הידוק

(Number of cavity)

חללים

4

(mold stroke)

מ"מ

0-200

(stretch stroke)

מ"מ

360

(שבץ תחתון)

מ"מ

50

(גובה חלל)

מ"מ

203.2

(מגרש חימום)

מ"מ

76.2

(מספר המחזיק)

PCS

96

מְכוֹלָה

(נפח מיכל מקסימלי)

ltr

5.0

(קוטר צוואר מקסימלי)

מ"מ

48

(Max.prefrom גובה)

מ"מ

160

(קוטר מיכל מקסימלי)

מ"מ

180

(מקסימום גובה מיכל)

מ"מ

360

(פלט תיאורטי)

B.P.H

3500-4000

מערכת חשמלית

(תנור חימום)

יחידות

6

(ערוץ קופסה)

קוֹמָה

12

(מספר המנורה)

יח'

96

(כוח חימום)

KW

86

כוח ממוצע

KW

56

(כוח מותקן)

KW

92



(מתח)

מתח

220V/380V/50/60Hz/3

שלב

מערכת אוויר



(operating pressure)

ק"ג/סמ"ר

7

(blowing pressure)

mpa

3.0-3.8

(high pressure air consuming)

M3/דקה

12

מערכת צ'ילר

(טֶמפֶּרָטוּרָה)

תוֹאַר

10-15

(לַחַץ)

Mpa

0.4

(קצב זרימה)

ליטר/דקה

100

(כוח חימום)

HP

10

 Machine

(LWH)

(ממד מכונה)

M

1.03.52.5(Heating)

2.52.02.5(Host)

(משקל המכונה)

ק"ג

8000
